- FEATURES : 0.98 MPA
Reduce Port
Investment Casting
Blow-out Proof Stem
PED97/23/EC(CE0035) Approved
Casting Approved AD2000-W 0
Thread:ASME B 1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO 7/1
Inspection Testing:API598,EN12266
|
| DIMENSION TABLE |
|
| Valae SIZE
|
1/4" |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
21/2" |
3” |
| ITEM |
D |
5 |
7 |
9.2 |
12.5 |
15 |
20 |
25 |
32 |
38 |
50 |
| H |
33 |
35 |
40 |
44 |
51 |
57 |
64 |
68 |
85 |
90 |
| W |
71 |
93 |
95 |
95 |
113 |
113 |
141 |
141 |
189 |
189 |
| L |
39 |
44 |
55 |
59 |
69 |
77 |
81 |
97 |
128 |
153 |
|
| |
 |
| |

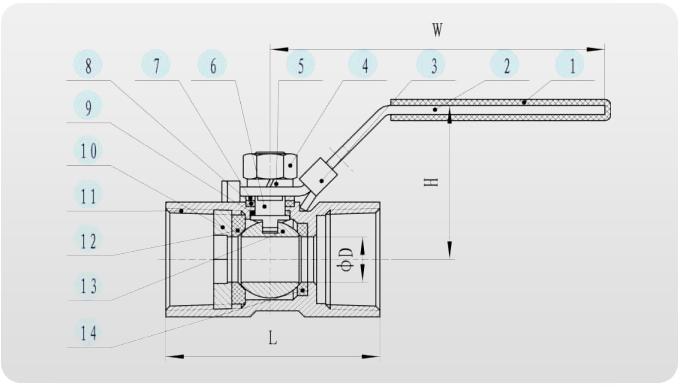

| MATERIAL LIST |
| No. |
DESIGNATION |
MATERIAL |
| 1 |
PLASTIC COVER |
PLASTIC |
| 2 |
HANDLE |
SUS304 |
| 3 |
LOCKING |
SUS304 |
| 4 |
STEM NUT |
SUS304 |
| 5 |
SPRING WASHER |
SUS304 |
| 6 |
STEM |
SUS304 |
| 7 |
PACK RING |
SUS304 |
| 8 |
STEM PACKING |
PTFE |
| 9 |
THRUST WASHER |
PTFE |
| 10 |
CAP |
CF8/CF8M |
| 11 |
BODY |
CF8/CF8M |
| 12 |
BALL SEAT(A) |
RPTFE |
| 13 |
BALL |
CF8/CF8M |
| 14 |
BALL SEAT(B) |
RPTFE |
|
|
